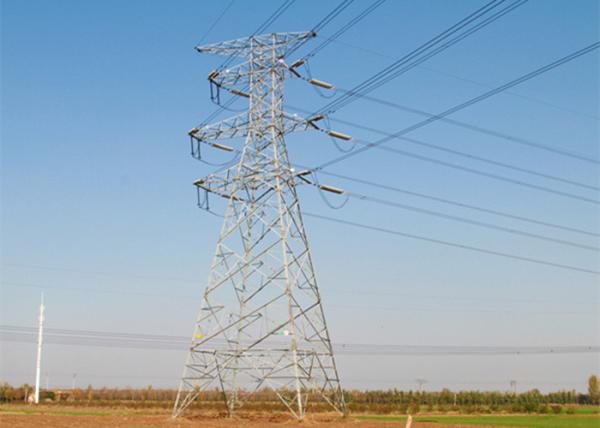

110KV Terminal Steel Tower Electric Transmission Towers for Power Distribution
1. Production decription
we are professional manufacturer of electric transmission towers used in high voltage AC and DC systems .
Electric transmission towers voltage from 10-1000KV
Steel gradesfor the electric transmission towers:
Tower legs: Chinese standard Q345B, which equal to ASTM A572 Grade 50,BS/EN S355JR
Others members: Chinese Q235B, which equal to ASTM A36,BS/EN S235JR
Bolts: Chinese grade 6.8 and 8.8, which equal to ASTM A394
Dimension and tolerance for angle : GB/T1591-1994, Equal to EN 10056-1/2
Hot dip galvanization: GB/T 13912-2002, which similar to ASTM A 123
The welding :AWS D1.1 or CWB standard
2. Product capacity
We have 5 auto production line for electric transmission angle steel towers Manufacturing,We can supply 3000 tons lattice steel tower
every month .Else we have enogh site for installing more production line if needed.
We only have plasma cutting machine ,14m bending machine and auto welding machines for pole towers .
3. Technical support
Our engineer and drawer has lots of designing ,lofting experience of lattice steel towers .
Which we can supply a overall solution of all the towers .
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality control
We have very strict quality control in every steel towers .
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
5. Trial assembly
We usually has two ways of trial assembly for lattice steel towers : trial assembly before galvanzation
and after galvanization.
6. Hot dip galvanization and painting
7. Package and delivery
Package we usually do as our clients requirment .Usually for angle steel towers,We use steel wire to make it into bundle and use special material to protect the Zinc.
8. Company introduction
Qingdao Liangta Steel Structure Co., Ltd. ,established in year 2009,is a leading professional manufacturer in the field of transmission steel towers (the voltage up to 1000kv), telecommunication towers, monopoles, substation structures and rooftop towers. We also supply steel profile products as per customers 'requirement.
The factory located in Jiaozhou bay of Qingdao, covered an area of over 60,000 square meters with an annual production capacity 40,000 tons.
Location:
Less than one hour drive from Qingdao International Airport, 1 hour drive from Qingdao sea port.
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems Certificate: OHSAS 18001:2007
We also have many experiences of foreign projects, like Philippines, Myanmar, Iraq, Mauritania and so on.
Welcome to contact us ,we make sure your every question will be answered in time .
Certificate:
9. Product catalogue:
